mtolhuys / laravel-schematics by mtolhuijs

This package allows you to make multiple diagrams of your Eloquent models and their relations. It will help building them providing drag and drop relations, forms to create and edit your models and many options like adding resource controllers, form requests and running migrations by the click of a button or (configurable) automatically. It also will give you insights in the migrations you ran and the ones specified in your migrations folder.

Its aim is to help you (and your team) get more grip on the models from a code perspective, the status of your migrations and build / edit them faster.

Installation

You can install the package via composer:

composer require mtolhuys/laravel-schematics

Run php artisan schematics:install which will do the route caching, create vendor assets in your public folder and setup the configuration file.

Or...

php artisan vendor:publish --provider="Mtolhuys\LaravelSchematics\LaravelSchematicsServiceProvider"

and visit {your-app}/schematics

Make sure the routes are cached!

Usage

Starting out / Searching

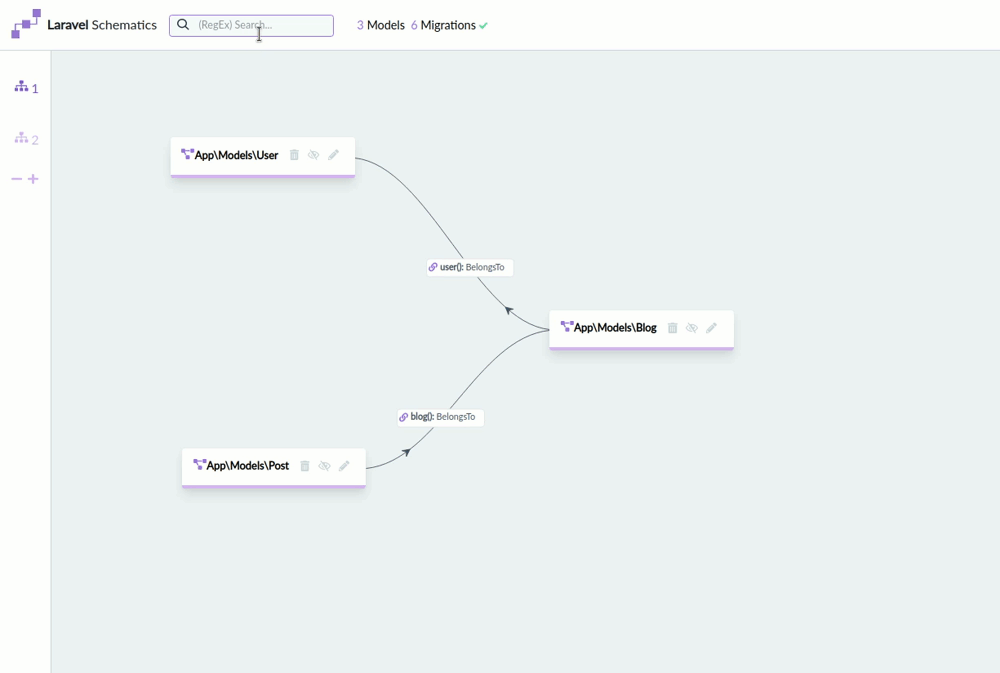

If you already have a lot of models I recommend you use the search bar to narrow down the diagrams into specific sections f.e:

These searches are saved across your diagrams.

Relations

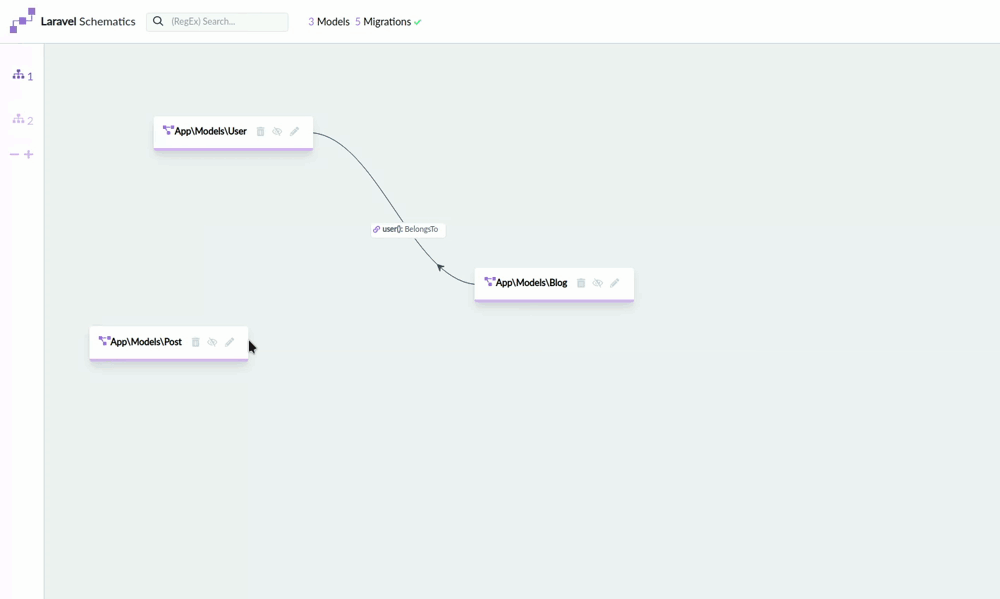

When you drag and drop the arrow to another model you'll get a form to specify the relation you want to build f.e:

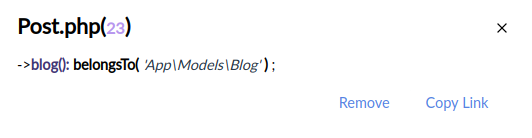

Clicking on them will show something like:

Building / Editing Models

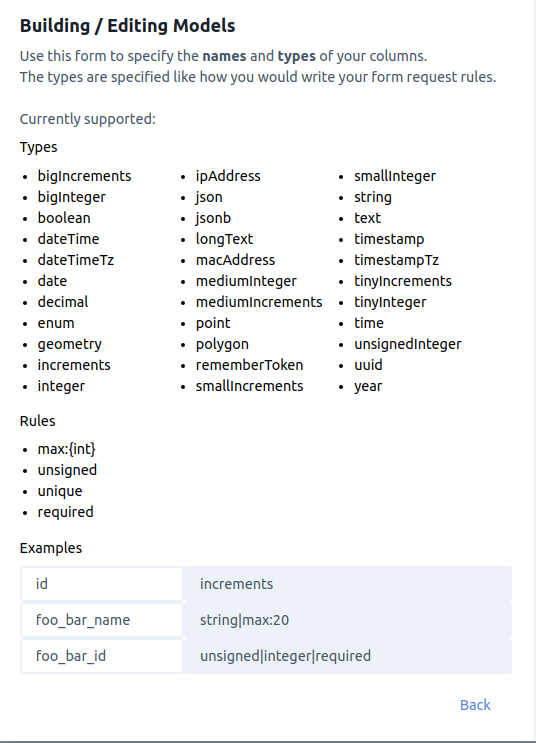

To specify the types of your columns I've chosen the form request rule syntax. To see what's available you can click the little help icon below the fields in the model form:

The package is flexible enough to differentiate between renaming and changing column types. It will create migrations according the need to change or create a table and setup your $fillables. I do strongly suggest you check the migrations before running them if the stakes are high.

You don't have to worry about existing migrations though, the package will only look for migrations it created itself by checking the value of the @tag in the comment it adds. It looks like this:

/**
 * Laravel Schematics
 *
 * WARNING: removing @tag value will disable automated removal
 *
 * @package Laravel-schematics
 * @author  Maarten Tolhuijs <mtolhuys@protonmail.com>
 * @url     https://github.com/mtolhuys/laravel-schematics
 * @tag     laravel-schematics-foobar-model
 */

Changing Diagram Style

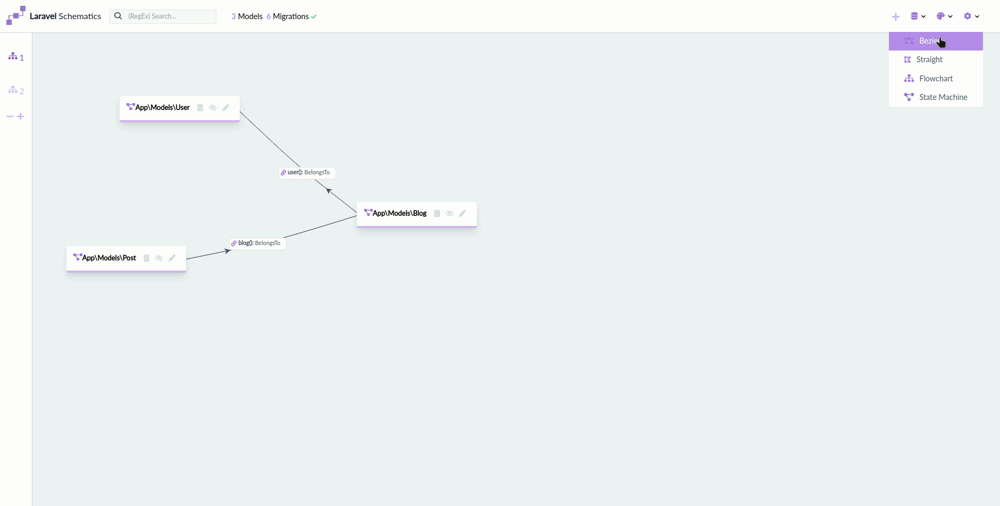

There are 4 diagram styles. Bezier, Straight, Flowchart and State Machine:

Importing / Exporting Diagrams

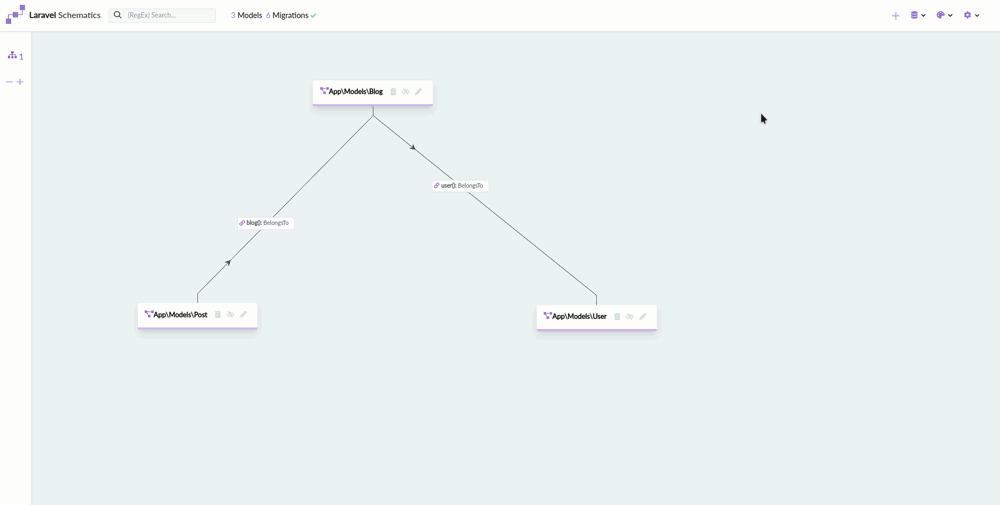

To save and / or share the diagrams you created you can use the export and import settings feature:

Testing

You can run the tests with:

composer test

Or, optionally, with coverage information:

composer test-coverage

Changelog

Please see CHANGELOG for more information what has changed recently.

Credits

This package is possible because of the effort and time of these people! ✨

Contributing

Since I'm getting some questions about this I want these things to be perfectly clear:

• This is a safe haven for contributions, every (positive) contributon matters!
• You are free (and encouraged) to use anything of this package for your own ideas.
• You can always ask for help or email me directly for any questions.

Please see CONTRIBUTING for further details.

Security

If you discover any security related issues, please email mtolhuys@protonmail.com instead of using the issue tracker.

License

The MIT License (MIT). Please see License File for more information.
